Non-invasive flowmeters measure natural gas volume and composition with no process penetrations
Looking back a decade or two, natural gas came from traditional fields with predictable composition and characteristics. As natural gas began to replace coal, demand increased, causing producers to develop new fields and drilling techniques—especially fracking— expanding the range of sources enormously while also reducing composition consistency.
Today, with liquified natural gas (LNG), hydrogen (H2) blending, biomethane blending and other new sources, the range of supply is wider than ever. Consequently, the chemical composition of natural gas can vary widely, changing its characteristics for fuel use on a daily basis. Gas producers, pipeline companies and end users must monitor its composition to determine makeup, heat value and contaminants at multiple points in the supply chain to ensure they do not experience problems.
Natural gas is nominally methane (CH4), which typically accounts for approximately 80%–98% of its volume. The balance can be many types of products, including heavier hydrocarbons (up to C9+), non-combustible gases, low-heat-value combustible gases and contaminants. Regulatory agencies and pipeline companies around the world define natural gas quality by limits on components other than CH4. While there is some variability, most regions include specification ranges for:
- The Wobbe Index (WI)
- Higher hydrocarbon content (through C9)
- British thermal unit (Btu) value (i.e., heat value or calorific value)
- Relative density
- Total sulfur content
- Hydrogen sulfide (H2S) content
- Water (H2O) content
- H2 content
- Carbon dioxide (CO2) content
- Oxygen (O2) content.
Analysis requirements. Required gas analysis depth and detail varies significantly depending on the application, but most variables ultimately reflect thermodynamic properties. Where a component-by-component percentage is necessary, such as a custody transfer point, a gas chromatograph (GC) will be in use. GCs can be slow, costly and maintenance intensive, but today’s models are much better than earlier units, although sampling systems remain particularly troublesome in many applications.
Where the WI is critical, such as fueling a gas turbine, a specialized Wobbe meter is often used simply for that calculation. In other situations, a flow computer may calculate critical values based on a density constant, which cannot always respond properly to gas variability.
As a practical matter, the level of analytical detail must match the application. Custody transfer at a major pipeline handoff point requires the highest accuracy and measurement of the most variables, but there are many situations where standard volume calculations are sufficient. In some instances, it is simply a matter of verifying that the current supply meets the basic regulatory definition of commercial natural gas.
The American Gas Association’s (AGA’s) Report No. 8 provides a method for calculating thermodynamic properties of natural gas by measuring density and compressibility, as these are closely related to its composition. So how does this work?
Natural gas does not behave as an “ideal gas” because it deviates from what should be ideal characteristics. Since this is well understood, the degree of deviation is expressed as a compressibility factor designated as Z. In this context, an ideal gas has a Z factor of 1. Natural gas, depending on conditions and its composition, can show a Z factor below or above 1, with the exact factor providing direct insight into its chemical makeup. This is not quite as detailed and accurate as readings from a GC, but it is much easier to measure and can be done in real time in conjunction with flow measurement.
Measuring the Z factor can indicate the presence of higher hydrocarbons (relative to CH4) capable of increasing Btu value but also likely to liquify in pipelines. It can also indicate non-hydrocarbon impurities, such as nitrogen (N2), CO2 and H2S. A GC can back into a Z factor, calculating it based on composition; however, where the specific Z factor is measured directly, GC provides a useful proxy for more sophisticated gas analysis. This technique is recognized and included in standards and studies from the AGA, the U.S. National Institute for Standards and Technology (NIST), the Pipeline Research Council International and other organizations.
For each application, a range of possible compositions can be defined (e.g., the high caloric gas typically transported in pipelines, or more specific targets for critical production areas). Within this range of compositions, measurement techniques are available to measure sound speed, along with pressure and temperature values, to calculate compressibility and molar mass. With the known molecular weight of the carrier gas, the percentage of a single impurity can be determined (e.g., H2 in natural gas). With a more precise definition of the application range, correlation uncertainty can be reduced, producing an uncertainty statement for each correlation model.
Measuring molar mass and density can also serve as proxies for more detailed chemical analysis since composition has a direct influence on these values. So, for a natural gas producer, pipeline company or large-volume consumer, how can these be implemented on a practical basis to work in parallel with or supplement custody transfer measurements?
Understanding a dynamic gas master. To put this situation into context, consider that a large-scale natural gas custody transfer point (FIG. 1) will use a flowmeter—likely a Coriolis mass flowmeter or an eight-path ultrasonic flowmeter—to measure volume. A GC will work in conjunction with the flowmeter to analyze composition, thereby determining actual energy value, levels of contaminants and other factors, all of which can influence pricing. This kind of setup is very common, but it can be expensive, especially with larger pipe sizes.

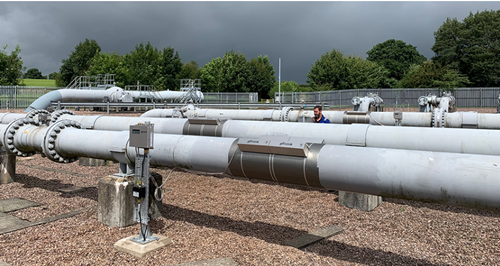

FIG. 1. At major custody transfer points, after the main pipeline breaks up, secondary flowmeters monitor branch lines. Using clamp-on ultrasonic flowmeters to make measurements is a cost-effective and practical approach.
A dynamic gas master (DGM) can provide much of the same data, although in different ways, and it can deliver very similar results, but with far less costly equipment and no need for process penetrations. This approach uses an externally mounted ultrasonic flowmeter, clamped to the pipe in any practical location, supplemented by an existing line pressure and temperature measurement. If a nearby temperature measurement is unavailable, this can also be taken by a separate instrument through the pipe wall without a process penetration.
A DGM measures gas flow and composition in real time, providing a standard cubic meter per hour (Sm3/hr) reading with the molecular weight and adjusting calculations when gas composition varies (FIG. 2). This provides a working measurement competitive with conventional custody transfer valuations.

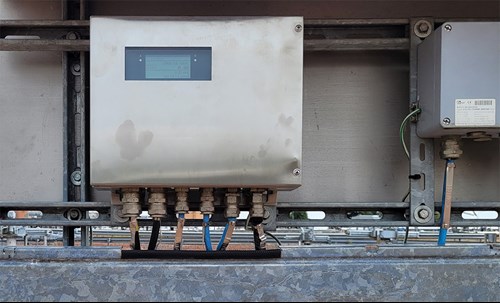

FIG. 2. A dynamic gas master combines external temperature and pressure measurements with its own internal data to develop deep analysis of gas composition and flow volume.
A DGM does this by measuring gas velocity for flow and for the sound speed of ultrasonic pulses passing through the gas. With this measurement, combined with pressure and temperature readings, it is possible to perform a range of calculations to determine:
- Z compressibility factor
- Standard volumetric flow (Sm3/hr)
- Molar mass
- Btu value
- Density, base and operational.
Volumetric flow and molar mass are available as primary variables and can be sent continuously to a host automation or asset management system.
The following case studies show how a DGM can be used as a benefit in various applications.
CASE STUDIES: APPLYING COMPRESSIBILITY MONITORING
A major European natural gas transport operator has many locations where it is critical to have an accurate picture of how much gas is passing through strategic points and its composition. When presented with the possibility of using the authors’ company’s propriety flowmetera to replace more troublesome methods, company engineers decided the potential advantages were worth exploring.
The company conducted a series of tests to determine if this ultrasonic technology could deliver all the required data (FIG. 3). The authors’ company’s double-channel DGMb, tuned to 500 kHz and provided with pressure and temperature data, would have to measure standard volumetric flow (Sm3/hr) through a 6-in. pipeline at pressures between 3 bar and 30 bar.

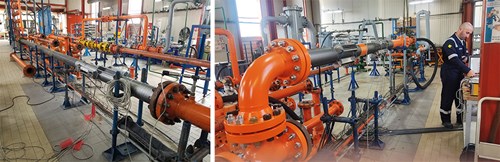

FIG. 3. A major European natural gas transport operator tested the authors’ company’s double-channel DGMb extensively to prove its suitability for their application.
Additionally, it would have to indicate Z factor, Btu value and molar mass against existing company standards.
- The tests were carried out on 11 d across 3 mos.
- The flowmeter calculated Z factor and molecular mass from sound speed measurements.
- The Btu value was calculated accurately, even with the presence of N2 (0.7%) and CO2 (0.3%) in the test gas.
Engineers administering the test were not expecting analytical accuracy identical to the GC since this was not necessary for the anticipated applications. Nonetheless, they observed deviations well below ±1% from a device that requires no process penetration and no sampling system, and delivers real-time data. The double-channel DGMb was then installed at multiple locations, including the following two examples.
Example 1: Underwater pipeline landfall. The company operates an underwater pipe landfall facility, receiving gas from an offshore producer. Operators found it difficult to reconcile volumes coming into the facility with what was being shipped out. Even after accounting for changes due to initial natural gas processing, the values did not match. The conclusion was that measurements at the inlet were inaccurate, calling for a reevaluation of the initial metering approach.
The site was using a legacy ultrasonic flowmeter on the 16-in. pipe at the landfall station. Its performance was suspect, but whether the flowmeter was accurate or not, underlying assumptions about the data were incorrect:
- Pressure adjustment calculations assumed operations between 70 bar and 130 bar, but normal operation was typically around 55 bar, causing 10%–15% uncertainty.
- Incoming temperatures fluctuated between 30°C and 45°C (86°F and 113°F), but analysis assumed this was stable, adding 5%–10% of possible uncertainty.
- Z factor compressibility was monitored, but it was being calculated by the site’s GC located farther downstream after initial gas treatment with removal of higher hydrocarbons [natural gas liquids (NGLs)], so the measurement did not reflect the incoming stream at all.
- Reducing uncertainty to below 5% would require continuous real-time measurement of pressure and temperature with continuous compensation.
Site engineers installed the double-channel DGMb (FIG. 4) on the incoming pipe with pressure and temperature data inputs. This solved the problem, producing data able to resolve input and output mass balance.

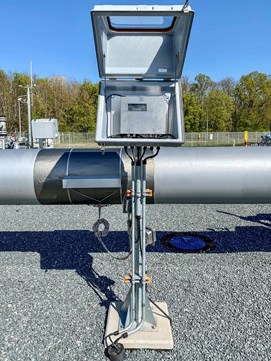

FIG. 4. Adding the double-channel DGMb on the incoming landfall pipe helped balance input with output for the facility.
Example 2: Compressor monitoring station. Large turbine compressors driving gas through pipelines must operate within a narrow turndown range. When their full output is unnecessary, some portion is diverted from the compressor output back to the inlet to maintain total volume. Measuring the bypass amount must be very precise for effective control.
Site engineers installed the double-channel DGMb on the bypass pipe (FIG. 5), supplemented by available temperature and pressure measurements. It now measures standard volumetric flow, which has proven suitable for the measurement accuracy required for bypass volume control.

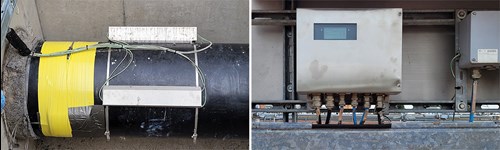

FIG. 5. The turbine compressor bypass pipe is difficult to access, so the low-maintenance requirement for the double-channel DGMb is a useful addition to its performance capabilities.
The DGMb determines the Z factor by measuring sound speed using the same clamp-on ultrasonic transducers that determine the flowrate. The turbine bypass line is very short and therefore does not have long straight sections capable of creating turbulence. Using the dual channel configuration compensates for flow profile disturbances in the pipe.
With the DGMb’s non-invasive flow measurement, including simultaneous determination of gas composition and Z factor measurement, compressors are reliably controlled by balancing bypassed gas volume against gas volume fed into the pipeline.
Looking ahead. Clamp-on ultrasonic flowmeter technology is not a new concept, but the sophistication of data analysis has grown greatly, providing far more information. Today’s offerings provide deep insights into difficult fluids such as steam, natural gas and compressed air, in addition to more common products.
For natural gas distribution and consumption, clamp-on flowmeters offer unmatched flexibility because they can be installed in any location or piping configuration. When provided corresponding pressure and temperature measurements, this technology is a very easy and economical method to monitor gas flow and consumption for everything from pipeline branches to individual applications.
As the range of gas supplies continues to grow, the author's company's flowmetersa can provide information about gas quality at every point of the network, as well as observe new compositional changes, such as H2 concentration from green production sources. Clearly, this technology is well suited to the changing role of natural gas in new energy environments.
NOTES
a FLEXIM Fluxus
b Emerson’s Flexim FLUXUS G722 Double-Channel DGM
