Detect operator-induced faults on a liquid expander
HASTINGS, Brüel & Kjær Vibro, Nærum, Denmark
Increasing LNG production to fulfill strong market demands places a burden on assets. Such was the case for one LNG plant that thought it had found a way to shorten the startup time for liquid expanders. The result was not as expected. Fortunately, the condition monitoring system and service specialists provided diagnostic information to understand the problem better and avoid a catastrophic failure.
Machine condition monitoring in an LNG plant. LNG production processes where the critical machines are typically monitored are shown in FIG. 1. These include liquefaction, LNG storage and loading, and power and utilities.

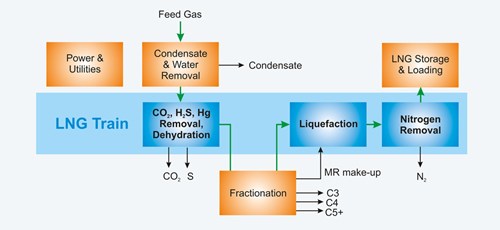

FIG. 1. Typical LNG processes—where critical machines are monitored—shown in blue (part of the LNG train) and orange (other plant sections).
Balance-of-plant machinery is monitored in all the processes. The typical critical machines monitored are shown as white icons in FIG. 2: there are two liquid expanders (also known as hydraulic turbines) in the liquefaction process, a mixed-refrigerant expander and an LNG expander.

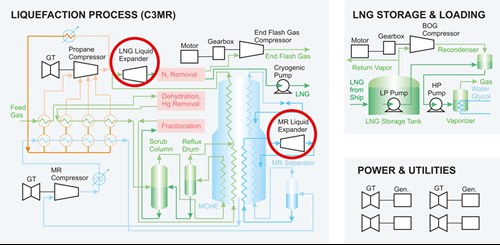

FIG. 2. Typical critical machines monitored in the LNG processes. The liquid expanders are circled in red.
One important issue with critical machines is that if one of the liquid expanders or any of the critical machines trip during the liquefaction process, operators have only a few hours to decide if it can be restarted without the loss of cooling capacity. If extended downtime is required, a complete train restart may be needed, causing days of downtime, equating to millions of dollars in lost production.
The liquid expanders. The two liquid expanders being monitored on the second train of an LNG plant are shown in FIG. 3. The two types of expanders are essentially the same, except the LNG expander works on a colder stream than the mixed-refrigerant expander. The mixed-refrigerant expander includes three bearings: the turbine, the middle bearing and the generator. The process includes 300 tpd, and the cost of one expander is between $500,000 and $1 MM.

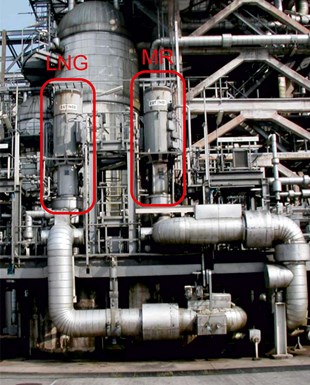

FIG. 3. Liquid expanders in the liquefaction process: the LNG expander (left), and mixed-refrigerant expander (right).
As a cryogenic machine, the liquid expander takes in high-pressure and extremely cold liquids and reduces the pressure and stream through the turbine. With the added pressure from the liquid, it is used to run the generator, effectively functioning as a pump in reverse. In more specific terms, the variable-speed, mixed-refrigerant expander isentropically expands heavy-mix refrigerant from the main cryogenic heat exchanger and flashes it back to a different part of the heat exchanger at a lower pressure and lower temperature. A Joule-Thomson valve expander is used to regulate the expansion, preventing the stream from flashing into two phases inside the expander. It is also used as a backup in case the expander malfunctions.
How is the liquid expander monitored? An overview of the monitoring techniques is shown in FIG. 4. This includes vibration, the phase-reference process data and performance-monitoring calculations.

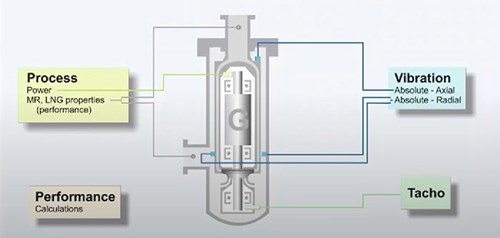

FIG. 4. Monitoring techniques used for the liquid expander.
For vibration monitoring, there are two X-Y accelerometers located on the middle bearing. Numerous potential failure modes can be detected from the bearings and the rotor turbine, including flow disturbance, and obstruction and thermal expansion problems. The tacho measurements (i.e., phase/reference) are normally used for triggering measurements, tracking measurements, phase reference and to determine speed. Process measurements are imported for correlating with vibration measurements and used as input to calculate performance parameters. Process measurements are also used to trigger more detailed analysis after an event and are used for input variables for actual performance calculations. Performance monitoring is used to calculate power consumption, pressure ratio, turbine efficiency and overall thermal efficiency.
Case study. At an LNG plant, the mixed-refrigerant expander on all the trains had been working for several years without a mishap until a bearing fault was suddenly detected on Train 4 during a routine startup. Not long after, a similar incident occurred at another LNG plant, so a specialist from the author’s company’s was asked to perform a root cause analysis (RCA). The middle bearing was affected, as shown in FIG. 5.

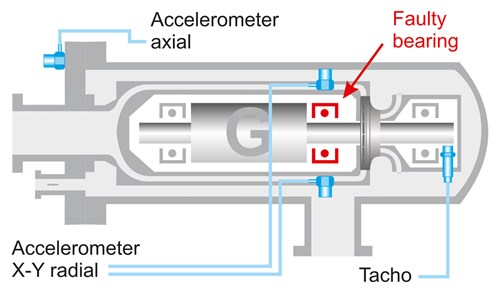

FIG. 5. Sensors installed on the mixed-refrigerant expander.
As seen in FIG. 6, the vibration level increased after the first startup. The expander was shut down and immediately restarted. Afterwards, the vibration resumed as before and was shut down a second time for inspection. No problem was found, so it was started up a third time and again the vibration increased, this time a little more dramatically. Finally, the machine was stopped for maintenance, and a specialist was called in to perform an RCA of the problem.

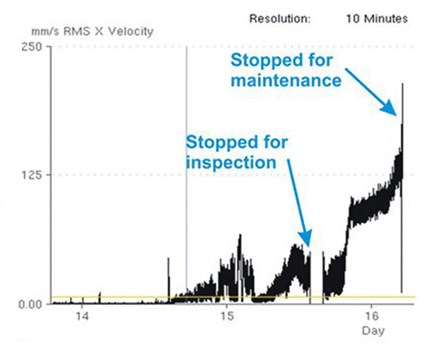

FIG. 6. Accelerometer velocity amplitude trend showing the increase in vibration from the first startup after an overhaul until the last shutdown for maintenance.
After reviewing the data, it was determined that the premature failure of the bearings was caused by a recent change in the startup sequence in the expander for Train 4. During the traditional startup sequence, the mixed-refrigerant cooldown streamed into the expander through special channels to the bearings to precool them before the expander was put into operation. A modified startup sequence was expected to save time to reach normal operation. This procedure was implemented by the plant manager on a single train to test it; the intended purpose for this modified procedure was to shorten the precooling time by simultaneously passing the cooldown stream in the normal mixed-refrigerant stream—which is at a lower pressure—through the bearings’ channels in the expander.
This recommendation was also given to another LNG plant to test. Unfortunately, problems appeared immediately after the new startup sequence was implemented. Although there was no load on the mixed-refrigerant compressor expander, the rotor began to spin due to the mixed refrigerant cooldown stream flowing through the turbine. This flow caused the turbine to turn, and this turning motion damaged the bearings before they were precooled enough to shrink, causing the bearings to fail prematurely.
Although the bearings were damaged, there was no catastrophic failure of the expander itself. Fortunately, during the time of the new startup sequence, the monitoring system detected the rapidly progressing fault of the liquid expanders at both LNG plants before the protection system tripped. This manual shutdown allowed for a proper shutdown sequence, which would not have been the case if there was a protection system trip. After this case, the new startup sequence was discontinued, and the original one was reimplemented.
Takeaway. Often, machine condition monitoring is considered as detecting faults at an early stage of development due to wear and degradation of machine components. Those users whose machines operate at a constant load and speed may believe that failure is predictable, and that they do not need special condition monitoring functionality. However, many other kinds of faults can occur that lead to premature failure, such as manufacturing defects, assembly error, lack of cooling or lubrication, and even process-related conditions such as overpressure and cavitation, among others. In this case study, the fault was an operational fault during startup. Although machine component degradation and wear may be straightforward as far as detection and diagnostics go, it may be more complicated for the other types of faults mentioned. These may be more difficult to detect early with basic measurements and require more expert support to diagnose, as was demonstrated in this case study.
