Tackling the effect of different impurities in CCS pipelines

With rising global carbon dioxide (CO2) emissions and worldwide commitment to mitigate and avoid environmental impacts, the contribution of carbon capture and storage (CCS) technologies is crucial. Controlling impurities in CCS pipelines is key to this effort. This article presents an analysis of how trace components in CO2 streams impact thermodynamic and transport properties with potential long-term consequences on asset integrity. While the associated risks are highlighted, the focus is on developing robust engineering solutions for large-scale implementation.

According to the International Energy Agency (IEA), "Carbon capture and storage involves the capture of CO₂ from large point sources, including power generation or industrial facilities that use either fossil fuels or biomass for fuel. The CO₂ is then compressed and transported via pipelines, ships, rail or trucks to be used in a range of applications or injected into deep geological formations like depleted oil and gas reservoirs or saline formations for permanent storage."¹ FIG. 1 illustrates the CCS process that involves capturing CO₂ emissions from sources like fossil fuel power plants or manufacturing plants and storing it to prevent it from entering the atmosphere.

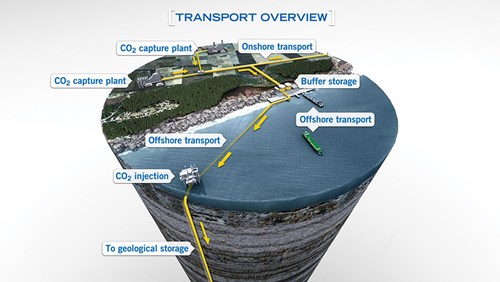

FIG. 1. A simplified representation of a CCS project consisting of capture, transport and storage underground.


CCS is a critical technology for emissions reduction and achieving net-zero emissions, as it can significantly reduce greenhouse gas (GHG) emissions in hard-to-abate manufacturing sectors such as cement, steel, chemical production and the oil and gas sector.² Collectively, these industrial sectors produce ~60% of global CO2 emissions, with the oil and gas sector—and refining in particular—accounting for approximately 42% of the total CO2 emissions.³

The IEA estimates that CCS must contribute at least 15% of the total CO₂ emissions reductions needed to achieve net-zero by 2050.⁴ This underscores the importance of CCS in the global energy transition. No realistic scenario can achieve net-zero by 2050 without the contribution of CCS.

According to the Global CCS Institute, the CCS industry is rapidly developing, as shown in FIG. 2.⁵ In 2023, > 20 new carbon capture facilities were either under construction or commencing operations, capturing more than 350 MMtpy of CO₂. This represents an increase of nearly 50% since 2022, highlighting the rapid growth and critical role of CCS in reducing emissions. A similar growth is expected for 2025.

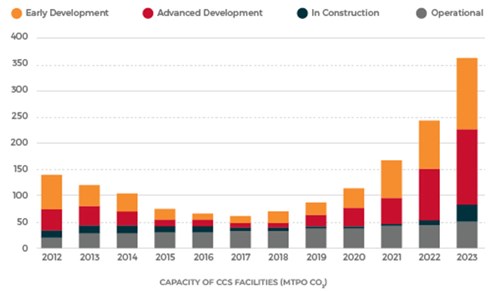

FIG. 2. Global CCS capacity 2012–2023.⁵

Understanding the thermodynamic behavior of CO₂ mixtures. Despite increasing demand, CCS projects present unique technical and economic challenges. CO₂ has unique thermodynamic properties, particularly related to its unusually high Joule-Thomson (J-T) coefficient, which makes it difficult to manage during transport and storage.

This J-T coefficient represents the rate at which a fluid cools down or heats upon expansion or compression. CO2 has a large, positive J-T coefficient, which means it cools down when expanded or heats up when compressed, rapidly and by large amounts. This is problematic during transport and storage. Rapid cooling can lead to thermal shocks in transport and injection facilities, such as pipelines and well tubings/casings, risking cracks and compromising infrastructure integrity. These risks increase in a project’s early stages when highly compressed CO2 is injected into a low-pressure depleted reservoir.

Phase behavior and the effect of impurities. Another key challenge in CCS transport is related to its significant variations in density and viscosity at different operating conditions. To avoid excessive pressure drops and maximize the mass flowrate, CO2 is transported in single phase, ideally at high pressure in supercritical dense phase. This also minimizes the risks of corrosion associated with liquid or aqueous phase drop-out.

Maintaining operating conditions in the supercritical range, however, is challenging. As the CO2 is transported along pipelines, its pressure and temperature drop rapidly, as depicted in FIG. 3.

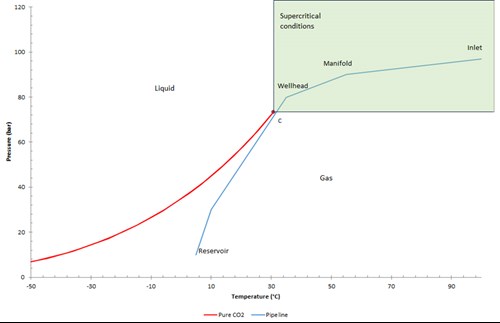

FIG. 3. A schematic representation of the profile of a CCS transport and injection line overlayed on the phase diagram of pure CO2.

When the fluid reaches the injection wellhead, it is likely to be in conditions nearing the critical point of CO2 [31.1°C (~88°F) and 73.8 bar]. Initially, the injection well of a depleted reservoir is likely to be at an even lower pressure (~10 bar or less). Therefore, during the expansion in the well, the fluid may transition to a liquid phase. In the presence of impurities, the two-phase coexistence (represented by the red curve in FIG. 3) expands to a two-phase coexistence region (as shown in FIG. 4). The width of the curve is determined by the level of impurities.

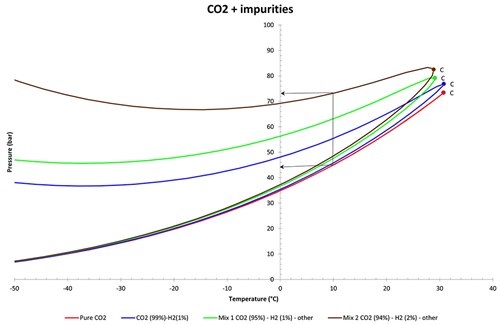

FIG. 4. Two-phase (gas-liquid) coexistence of pure CO2 and typical mixtures found in CCS applications.

In the expansion across the wellhead choke or along the tubing, the CO2 mixture cools further and is therefore likely to go through the two-phase coexistence region represented in FIG. 4. This may cause liquid buildup in the wells, excessive cooling, corrosion or even blockages due to the formation of solids (e.g., hydrates) in some extreme cases (e.g., when the CO2 mixture gets into contact with water forming in the reservoir). As the reservoir fills up and the backpressure increases, operating conditions in the transport and injection facilities may approach the two-phase region more quickly, causing liquid dropout in the transport lines. This situation may increase the friction, causing increased pressure drop and requiring extra compression and energy to maintain the flowrate. Impurities in CO2 mixtures play a crucial role in modifying the thermodynamic behavior of gas compared to pure CO2.

Impurities in the mixture modify the topology of the phase diagram. In a pure gas system, two-phase can coexist only on a phase coexistence line in the pressure and temperature representation of the phase diagram. As the gas mixture becomes more complex, the phase coexistence line opens into a phase coexistence region with different impurities affecting the bubble or dewpoint temperature in different ways.

Even small amounts of impurities can significantly shift the critical point and phase behavior of CO₂, as shown in FIG. 4. In particular, the presence of non-condensable gases such as hydrogen (H2) and nitrogen can alter the bubble and shift the critical pressure by several bars. Therefore, accurately predicting the thermodynamic behavior of the CO2 mixture is important to identify and mitigate the associated risks.

The J-T effect—when CO₂ cools rapidly upon expansion—can intensify these risks. The fast expansion of CO₂ containing impurities can cause cooling that results in the formation of liquid phases, causing blockages and pipeline damage. Additionally, water in the CO₂ stream can cause the formation of hydrates, potentially obstructing flow and causing significant operational challenges.

Another significant risk is corrosion. Even small quantities of water in the CO₂ stream react to form carbonic acid, which is highly corrosive. This can degrade pipeline materials and increase leaks. Impurities (e.g. sulfur compounds) exacerbate corrosion, making dehydration of the CO₂ stream essential. For this reason, CCS mixtures are dehydrated to a very high standard in the order of the parts per million (ppm) and controlled along the supply chain. Nonetheless, a small trace of some impurities often present in the mixture (e.g., alcohols, glycols) may cause the formation of small pools of liquid or aqueous phase, which can obstruct the flow or increase the risk of corrosion. This may be particularly critical in areas where the flow slows down (i.e., low points of the pipeline, or elbows and bends).

To mitigate the risks associated with these complex behaviors, accurate thermodynamic predictions are needed to develop effective engineering and operating solutions.

Optimizing CCS transport. An integrated asset model (IAM) integrates surface facilities and subsurface reservoirs to provide a holistic view of the asset. This approach is used in oil and gas applications for field planning and long-term forecasting. However, the thermodynamic complexity of CO2 and the tight hydraulic coupling between the storage site and transport facilities make it a key element to evaluate operating scenarios and design solutions.

FIG. 5 shows an IAM of a CCS transport and injection facility, including compression, dehydration, subsea pipeline transport and injection in offshore depleted reservoirs. This integrated approach allows users to simulate various scenarios over the life of the field to evaluate changes in reservoirs and in capture and transport facilities—including different impurity concentrations—to predict impacts on flow and transport conditions. This helps identify risks and optimize operations.

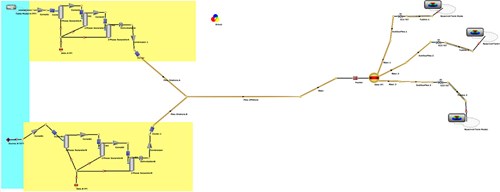

FIG. 5. A schematic representation of an IAM of a CCS facility, showing emitting sources, dehydration, compression, pipeline transport and reservoir injection.

In CCS—given the highly non-ideal thermodynamic behavior of CO2—compositional simulations are required to distinguish the effects of compositional changes over time and their impact on the technical and economic feasibility. Black oil and table-based simulations often used in oil and gas production will be insufficient for CCS applications. By adjusting operating parameters and engineering choices, IAM helps design transport strategies that minimize the risk of phase changes and maintain efficient flow.

Designing efficient transport strategies. IAM is a powerful tool for managing the complexities of CO₂ transport in CCS projects, particularly when dealing with different impurity concentrations. Using compositional simulations, IAM precisely models phase behavior and fluid properties across different pressures and temperatures. Sensitivity analyses identify critical impurity thresholds that could lead to operational issues, while scenario planning enables engineers to design robust transport strategies capable of handling a range of potential feed compositions. IAM's optimization capabilities allow engineers to determine the optimal pressure and temperature conditions for transport, considering the specific impurity profile of the CO₂ stream—this is critical to maintain single-phase flow and avoid issues like liquid dropout or hydrate formation.⁶

Risk assessment is another key feature of IAM, which models the impact of impurities on corrosion rates, material degradation and other risks to guide mitigation strategies and select materials for construction. From an economic perspective, IAM assesses the impact of different purification levels, balancing the costs of impurity removal against potential operational and maintenance costs associated with transporting CO₂ with higher impurity levels. The time-based simulation capabilities of IAM allow users to model how changes in impurity concentrations affect the transport system over time, enabling adaptive management strategies.

By modeling the entire CCS chain, IAM helps engineers evaluate how variations in the composition in the capture phase may impact the transport phase and storage processes downstream, ensuring a holistic approach to impurity and risks management. These capabilities empower engineers to design efficient and resilient transport strategies that optimize the performance and longevity of CCS infrastructure.

Case study. In this case study, the effect on a CCS transport and injection network was modeled and simulated when an additional source of CO₂ was introduced, as depicted in FIG. 6. Alongside existing emitters, representing a refinery and a fertilizer plant operating at a fixed flowrate, a storage facility was added that collects CCS gas mixtures transported to the storage tank via shipping. This source is located at the offshore hub and distributes CCS gas mixtures to the three offshore storing facilities in depleted gas reservoirs.

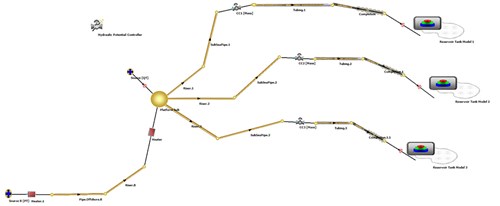

FIG. 6. A representation of the CCS transport and injection facility, with the source from shipping located at the offshore hub.

The IAM simulation shows that by adjusting the pressure and temperature, the system can be maintained in single-phase flow, preventing liquid dropout and ensuring efficient transport. Adding CO₂ via shipping impacts the overall flowrates and balance of the network, with potential capacity shortages in the transport and injection facilities as the turndown increases.

In this case, from a thermodynamic perspective, the additional CO₂ source had a higher purity, with a higher concentration of CO2. This affected the overall composition of the CO₂ transported stream. This change in composition can shift the critical points and phase behavior, requiring adjustments to the operational parameters to maintain a single-phase flow.

The IAM simulation demonstrated that increasing pressure and adjusting the temperature prevented liquid dropout and maintained efficient transport across the entire network. The simulation also showed that the addition of the CCS mixture from shipping can increase the overall flowrate; however, this must be balanced against the capacity of the transport and injection facilities. Continuous monitoring and adjustment of the operational parameters are essential to ensure the project’s feasibility and efficiency.

Tackling transport challenges with IAM. IAM provides a comprehensive approach to managing the complexities of CO₂ transport in CCS projects. By integrating surface and subsurface modeling, IAM helps identify and mitigate risks associated with the evolutions of the asset over time. These could be due to varying impurities, operational changes, project layout modifications, and the pressure increase as the storage site fills up. This integrated modeling approach  supports the design of robust transport strategies that maintain the integrity and efficiency of the CCS asset over its lifecycle. However, continuous monitoring and adjustment of operational parameters are essential to adapt to the dynamic conditions of CO₂ transport.

The ability of the integrated model to simulate various scenarios and predict the impact of different impurity concentrations allows engineers to design transport strategies that minimize risks and optimize performance. By maintaining a single-phase flow and preventing issues such as liquid dropout, hydrate formation and corrosion, IAM ensures the long-term sustainability and economic viability of CCS projects.

Takeaways. Managing impurities in CCS pipelines is a critical aspect of ensuring the efficiency, safety and long-term viability of CCS projects.

Through exploring this topic, the following key points emerge:

• Impurity impact: Even small amounts of impurities can significantly alter the thermodynamic behavior of CO₂, affecting critical points, phase boundaries and transport properties. This emphasizes the need for precise compositional control and monitoring in CCS systems.

• Thermodynamic complexity: The unique properties of CO₂, particularly its high J-T coefficient and complex phase behavior, complicate optimal transport conditions. Managing these properties is crucial for efficient and safe CCS operations.

• Risk mitigation: Impurities increase risks like corrosion, hydrate formation and phase changes. Risk assessment and mitigation strategies are essential for the long-term integrity of CCS infrastructure.

• Integrated modeling approach: IAM offers a comprehensive approach to manage the complexities of CO₂ transport, enabling engineers to optimize operations, predict issues and design robust transport strategies.

• Adaptive management: Given the dynamic nature of CCS projects and the potential variations in CO₂ sources and impurity profiles over time, adaptive management strategies supported by continuous monitoring and modeling are crucial.

• Economic considerations: Managing impurities presents significant economic implications, affecting both capital and operational expenses. Balancing purification costs against potential operational issues is a key consideration in CCS project planning.

• Technological advancement: Continued innovation in impurity removal, materials science and modeling techniques will be needed to improve the efficiency and reduce the costs of CCS systems.

While impurities in CCS pipelines present significant challenges, they are not insurmountable. Through careful engineering, advanced modeling techniques and a thorough understanding of CO₂ behavior, these challenges can be effectively managed. Implementing IAM offers practical benefits, such as reducing operational risks, minimizing costly shutdowns and ensuring compliance with safety and environmental standards. As the CCS industry continues to grow and evolve, the lessons learned and technologies developed in managing impurities will play a crucial role in realizing the full potential of CCS as a key strategy in global emissions reduction efforts.

LITERATURE CITED

1 International Energy Agency (IEA), “Carbon capture, utilisation and storage,” online: Carbon Capture, Utilisation and Storage - Energy System - IEA

2 International Energy Agency (IEA), “CCUS in clean energy transitions: CCUS in the transition to net-zero emissions,” 2020, online: https://www.iea.org/reports/ccus-in-clean-energy-transitions/ccus-in-the-transition-to-net-zero-emissions

3 Beck, C., S. Rashidbeigi, O. Roelofsen and E. Speelman, “The future is now: How oil and gas companies can decarbonize,” McKinsey, January 7, 2020, online: https://www.mckinsey.com/industries/oil-and-gas/our-insights/the-future-is-now-how-oil-and-gas-companies-can-decarbonize

4 International Energy Agency (IEA), “Energy technology perspectives 2020—Special report on carbon capture, utilisation and storage,” online: https://iea.blob.core.windows.net/assets/181b48b4-323f-454d-96fb-0bb1889d96a9/CCUS_in_clean_energy_transitions.pdf

5 Global CCS Institute, “Global status of CCS 2023—Report & executive summary,” November 9, 2023, online: https://www.globalccsinstitute.com/resources/publications-reports-research/global-status-of-ccs-2023-executive-summary/

6 Eduardo Luna-Ortiz, E., “’CO2cktails in a pipeline:’ The phase behaviours of CO2 with > 20 impurities,” Trondheim Conference on CO2 Capture, Transport and Storage,” Trondheim, Norway, June 21–23, 2021, online: https://sintef.brage.unit.no/sintef-xmlui/bitstream/handle/11250/2780236/Co2cktails%20In%20A%20Pipeline.pdf?sequence=1
