SignalFire introduces multi-purpose wireless inclinometer for tank hatch and pump jack monitoring for oil and gas industry
HUDSON, MA – SignalFire Wireless Telemetry introduced the TiltSCOUT, a new, patent-pending, intrinsically safe wireless inclinometer for tank hatch detection and pump jack motion monitoring. The device helps mitigate environmental and safety risks associated with accidental emissions from tanks by monitoring and reporting the status (opened, partially opened, closed) of the tank’s hatch.
The built-in, three-axis sensor continually monitors the hatch and wirelessly transmits status if the tank hatch is moved. This feedback can help operators avoid or minimize environmental and unsafe gas emissions from a tank.

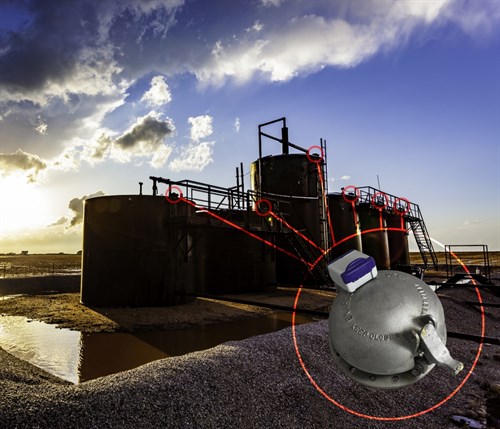

|The TiltSCOUT installs on top of tank hatches to monitor their angle to determine if the hatch is open, closed or partially closed.
When operating in a pump jack mode, the TiltSCOUT detects the change in angle (movement) of the pump jack walking beam to verify operation and report on/off events so operators can quickly resolve issues if pumping unexpectedly stops.
This latest wireless node from SignalFire reports information to a central gateway that can be connected to a control center for remote monitoring. Modbus or digital alarming is available at the gateway. This maintenance-free, non-contacting sensor incorporates a 900mHz radio and antenna for long-range data transmissions (up to ½ mile), and an internal battery pack that supports offers long-term operation of five years.
According to Sandro Esposito, SignalFire Director of Marketing “We strive for easy-to-use, cost- effective and reliable wireless measurement - a recipe packaged in our latest C1D1 wireless sensor.”

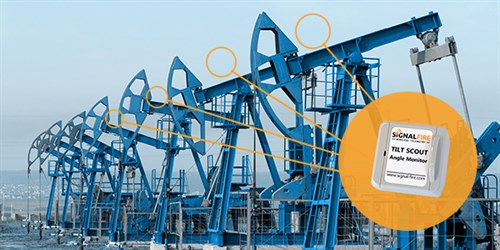

|Instead of wiring sensors to the pump jack as part of a remote monitoring and control system, the TiltSCOUT magnetically attaches to the pump jack without any tools.
Featuring a small footprint and simple design, the angle sensor is easy to install. Operators simply mount the TiltSCOUT on the Pump Jack (a magnetic base can be used) or tank hatch (bracket) without wires associated with a traditional wired system. With a NEMA4X enclosure for outdoor environments, the unit is Class 1 Division 1 certified for use in hazardous locations.
